Understanding the Connectors That Make Your System Whole

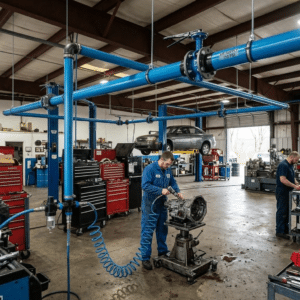

While the gleaming aluminum pipes are the most visible part of a modern air system, the true magic lies in the fittings. These precision-engineered components are what join the system together, route the air, and ensure a lifetime of leak-free performance. Understanding the different types of fittings and how they work will give you a new appreciation for the technology and help you plan your own system with confidence.
What exactly makes a “push-to-connect” fitting work, and are they reliable?
The genius of push-to-connect technology is its combination of simplicity and robust engineering. Inside each fitting are two critical components: a flexible O-ring and a stainless steel gripping ring. When you push a properly cut and deburred pipe into the fitting, it slides past the gripping ring and seats securely against the O-ring. The O-ring creates a perfect, airtight seal. At the same time, the sharp teeth of the gripping ring bite into the outside of the aluminum pipe. The higher the pressure inside the pipe, the more it pushes against the fitting, and the harder the teeth grip. This makes the connection incredibly secure and vibration-resistant. It’s a far more reliable and permanent seal than traditional threaded pipe, which can loosen over time. These advanced quick-connect fittings are the heart of the system’s reliability.
Can I connect my new aluminum system to my existing compressor or old pipes?
Yes, absolutely. This is a common requirement, and there are specific fittings designed for this exact purpose. The outlet on most air compressors and the ends of old steel pipe systems use a standard thread known as NPT (National Pipe Taper). We offer a range of adapter fittings that have the push-to-connect receiver on one end and male or female NPT threads on the other. This allows you to easily thread a connector onto your compressor’s tank, your main regulator, or an existing steel pipe, and then simply push your new aluminum pipe into the other end to begin your modern system. This seamless integration makes upgrading or expanding an existing system incredibly straightforward.
What are the main types of fittings I will need to build a system?

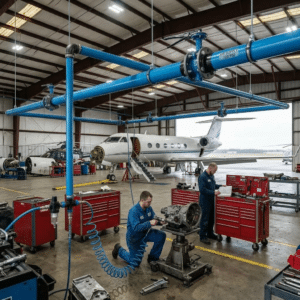

While there are many specialized fittings, most systems are built from a handful of core components. Couplings or unions are used to join two pipes together in a straight line. Elbows, typically in 90-degree and 45-degree variants, are used to change the direction of the pipe run. Tees are used to split one line into two, forming the branches of your system and creating the drops for your workstations. Wall-mounted outlet blocks are specialized fittings that secure to the wall and provide one or more ports to plug in your air hoses. Finally, end caps are used to terminate the end of a pipe run. A thoughtful combination of these basic building blocks is all you need to create a complex and highly functional layout.
What is a manifold, and how is it different from a tee fitting?
While a tee splits a line once, a manifold is a single block that takes one air inlet and distributes it to multiple outlets, all in one compact location. Think of it as a power strip for your compressed air. This is incredibly useful at a workbench where you might want to have several different tools connected at once. For example, a manifold could allow you to have a small nailer, a die grinder, and a blow gun all hooked up and ready to use without constantly swapping couplers. It is a massive convenience and productivity booster for any busy workstation. It’s an accessory that truly showcases the modular and adaptable nature of a modern compressed air system, a topic often discussed in depth by tool experts like those at Pro Tool Reviews.
